Integrated design with beautiful appearance, fewer parts, and connectors reduce the possibility of unit failure and leakage; direct discharge of dry compressed air, fully guarantee the quality of user terminal gas; greatly save customer installation costs and use space.
|
| |||||||||
| Model | SLT-7.5F | SLT-7.5V | SLT-11F | SLT-11V | SLT-15F | SLT-15V | SLT-15F | SLT-15V | |
| Motor | Power(kw) | 7.5 | 7.5 | 11 | 11 | 15 | 15 | 15 | 15 |
| Horsepower(ps) | 10 | 10 | 15 | 15 | 20 | 20 | 20 | 20 | |
| Air displacement/Working pressure (M³/Min./MPa) | 1.2/0.7 | 1.2/0.7 | 1.6/0.7 | 1.6/0.7 | 2.5/0.7 | 2.5/0.7 | 1.5/1.6 | 1.5/1.6 | |
| 1.1/0.8 | 1.1/0.8 | 1.5/0.8 | 1.5/0.8 | 2.3/0.8 | 2.3/0.8 | ||||
| 0.9/1.0 | 0.9/1.0 | 1.3/1.0 | 1.3/1.0 | 2.1/1.0 | 2.1/1.0 | ||||
| 0.8/1.2 | 0.8/1.2 | 1.1/1.2 | 1.1/1.2 | 1.9/1.2 | 1.9/1.2 | ||||
| Air outlet diameter | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | |
| Lubricating oil volume (L) | 10 | 10 | 16 | 16 | 16 | 16 | 18 | 18 | |
| Noise level dB(A) | 60±2 | 60±2 | 62±2 | 62±2 | 62±2 | 62±2 | 62±2 | 62±2 | |
| Driven method | Direct driven | Direct driven | Direct driven | Direct driven | Direct driven | Direct driven | Direct driven | Direct driven | |
| Start method | Υ-Δ | PM VSD | Υ-Δ | PM VSD | Υ-Δ | PM VSD | Υ-Δ | PM VSD | |
| External dimensions | Length (mm) | 1600 | 1600 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Width (mm) | 700 | 700 | 800 | 800 | 800 | 800 | 800 | 800 | |
| Height (mm) | 1500 | 1500 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | |
| Weight (kg) | 370 | 370 | 550 | 550 | 550 | 550 | 550 | 550 | |

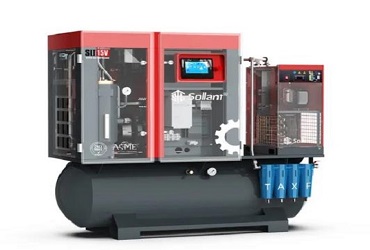

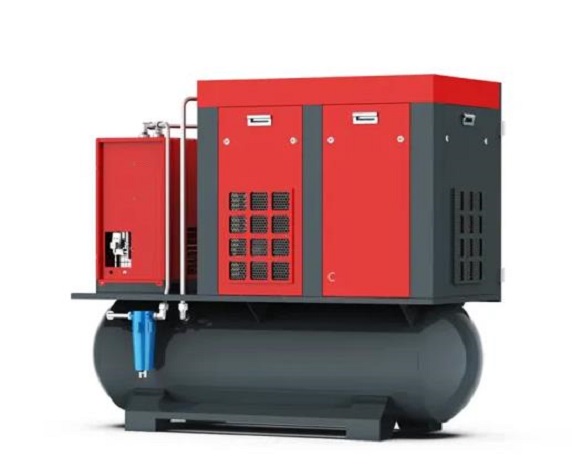

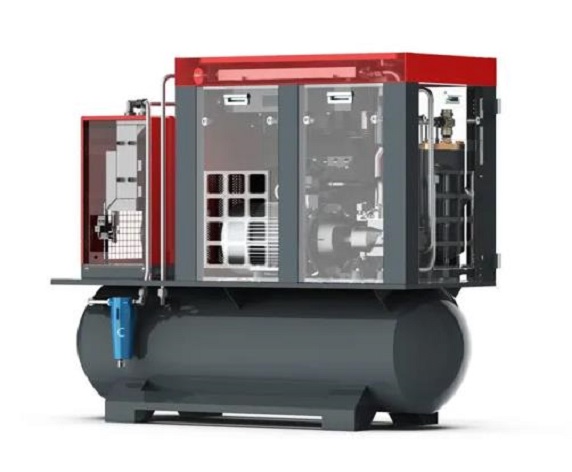

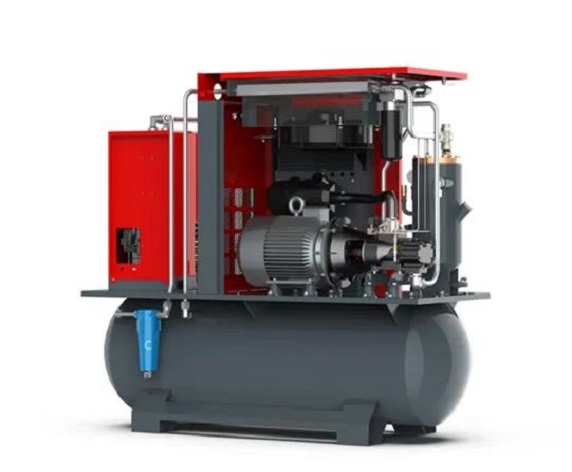

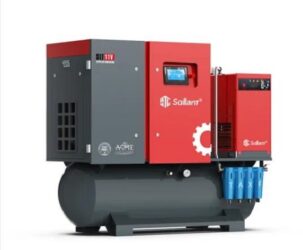

7.5-250HP Industrial Screw Air Compressor structure of a unique design, a compact, stylish appearance, high efficiency, small energy consumption, low noise characteristics and long life, is a smart environment-friendly products. Widely applied in metallurgy, machinery, chemicals, and mining, and electric power industries of the ideal gas source equipment.
If you are looking for a manufacturer of 7.5-250HP Industrial Screw Air Compressor in China, you are in the right place. Shandong Zollant machinery manufacturing Co., Ltd. is one of the most professional manufacturers and suppliers of 7.5-250HP Industrial Screw Air Compressor.
